| Tipas | Šerdies gabaritai | Galia, W | Svoris, kg |

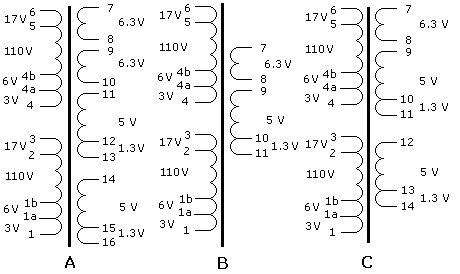

Brė- žinys |
Maksimalios antrinių apvijų srovės, A | |||
| 7-8 | 9-10 | 11-12 | 14-15 | |||||
| TN1 | ŠL16x16 | 8.8 | 0.65 | B | 0.7 | 0.9 | ||
| TN12 | ŠL16x16 | 8.7 | 0.65 | C | 0.43 | 0.6 | 0.6 | |
| TN2 | ŠL16x20 | 13.3 | 0.75 | B | 0.35 | 2.2 | ||
| TN3 | ŠL16x20 | 13.3 | 0.75 | B | 0.3 | 2.1 | ||
| TN13 | ŠL16x20 | 13.3 | 0.75 | C | 0.82 | 0.82 | 0.82 | |
| TN30 | ŠL16x20 | 13.3 | 0.75 | A | 0.63 | 0.63 | 0.63 | 0.63 |
| TN4 | ŠL16x25 | 20 | 0.85 | B | 2 | 2 | ||
| TN14 | ŠL16x25 | 20 | 0.85 | C | 1.62 | 1.06 | 1.06 | |
| TN15 | ŠL16x25 | 20 | 0.85 | C | 1.06 | 1.3 | 1.3 | |
| TN16 | ŠL16x25 | 20 | 0.85 | C | 0.92 | 1.4 | 1.4 | |
| TN31 | ŠL16x25 | 20 | 0.85 | A | 3.2 | 0.15 | 0.15 | 0.15 |
| TN32 | ŠL16x25 | 20 | 0.85 | A | 0.75 | 0.75 | 1.15 | 1.15 |
| TN33 | ŠL16x25 | 20 | 0.85 | A | 0.23 | 1.16 | 1.15 | 1.15 |
| TN5 | ŠL16x32 | 30 | 1 | B | 0.55 | 5 | ||
| TN17 | ŠL16x32 | 30 | 1 | C | 0.92 | 2.3 | 2.3 | |
| TN18 | ŠL16x32 | 30 | 1 | C | 3.8 | 0.92 | 0.92 | |
| TN19 | ŠL16x32 | 30 | 1 | C | 0.92 | 2 | 2.8 | |
| TN34 | ŠL16x32 | 30 | 1 | A | 2.76 | 0.92 | 0.92 | 0.92 |
| TN35 | ŠL16x32 | 30 | 1 | A | 1.115 | 2.3 | 0.98 | 0.92 |
| TN36 | ŠL16x32 | 30 | 1 | A | 1.38 | 1.38 | 1.38 | 1.38 |
| TN6 | ŠL20x20 | 40 | 1.2 | B | 0.5 | 6.9 | ||
| TN7 | ŠL20x20 | 40 | 1.2 | B | 3.8 | 3.8 | ||
| TN20 | ŠL20x20 | 40 | 1.2 | C | 1 | 3.2 | 3.2 | |
| TN21 | ŠL20x20 | 40 | 1.2 | C | 1 | 1.15 | 5 | |
| TN22 | ŠL20x20 | 40 | 1.2 | C | 4.4 | 1.6 | 1.6 | |
| TN37 | ŠL20x20 | 40 | 1.2 | A | 4.6 | 0.98 | 0.98 | 0.98 |
| TN38 | ŠL20x20 | 40 | 1.2 | A | 0.98 | 3.2 | 1.6 | 1.6 |
| TN39 | ŠL20x20 | 40 | 1.2 | A | 0.92 | 0.92 | 2.76 | 2.76 |
| TN40 | ŠL20x20 | 40 | 1.2 | A | 3.2 | 1.38 | 1.38 | 1.38 |
| TN8 | ŠL20x25 | 58 | 1.45 | B | 5.4 | 5.4 | ||
| TN9 | ŠL20x25 | 58 | 1.45 | B | 0.7 | 9.9 | ||
| TN23 | ŠL20x25 | 58 | 1.45 | C | 1.6 | 4.5 | 4.5 | |
| TN24 | ŠL20x25 | 58 | 1.45 | C | 7.3 | 1.6 | 1.6 | |
| TN25 | ŠL20x25 | 58 | 1.45 | C | 6.5 | 2.1 | 2.1 | |
| TN26 | ŠL20x25 | 58 | 1.45 | C | 1.85 | 3.1 | 5.5 | |
| TN41 | ŠL20x25 | 58 | 1.45 | A | 0.69 | 1.5 | 3.94 | 5.0 |
| TN42 | ŠL20x25 | 58 | 1.45 | A | 1.6 | 3.0 | 3.0 | 3.0 |
| TN43 | ŠL20x25 | 58 | 1.45 | A | 5.4 | 1.7 | 1.7 | 1.7 |
| TN44 | ŠL20x25 | 58 | 1.45 | A | 1.0 | 2.48 | 3.45 | 3.45 |
| TN45 | ŠL20x25 | 58 | 1.45 | A | 3.04 | 5.4 | 1.1 | 1.1 |
| TN46 | ŠL20x25 | 58 | 1.45 | A | 2.65 | 2.65 | 2.65 | 2.65 |
| TN47 | ŠL20x25 | 58 | 1.45 | A | 1.06 | 4.0 | 2.7 | 2.7 |
| TN48 | ŠL20x25 | 58 | 1.45 | A | 2.7 | 5.5 | 1.15 | 1.15 |
| TN10 | ŠL20x32 | 77 | 1.7 | B | 7.1 | 7.1 | ||
| TN27 | ŠL20x32 | 77 | 1.7 | C | 0.86 | 4.35 | 9.2 | |
| TN28 | ŠL20x32 | 77 | 1.7 | C | 2.1 | 5.6 | 6.7 | |
| TN49 | ŠL20x32 | 77 | 1.7 | A | 1.65 | 5.64 | 3.34 | 3.34 |
| TN50 | ŠL20x32 | 77 | 1.7 | A | 1.8 | 6.44 | 2.88 | 2.88 |
| TN51 | ŠL20x32 | 77 | 1.7 | A | 1.7 | 1.7 | 5.4 | 5.4 |
| TN52 | ŠL20x32 | 77 | 1.7 | A | 0.52 | 6.79 | 3.45 | 3.45 |
| TN11 | ŠL20x40 | 98 | 2.1 | B | 9.4 | 9.4 | ||
| TN29 | ŠL20x40 | 98 | 2.1 | C | 2.7 | 5.5 | 11 | |
| TN53 | ŠL20x40 | 98 | 2.1 | A | 0.93 | 3.68 | 6.56 | 6.56 |
| TN54 | ŠL20x40 | 98 | 2.1 | A | 2.53 | 5.12 | 5.12 | 5.12 |
| TN55 | ŠL20x40 | 98 | 2.1 | A | 0.87 | 0.87 | 8.0 | 8.0 |
| TN56 | ŠL20x40 | 98 | 2.1 | A | 6.2 | 3.9 | 3.9 | 3.9 |
| TN57 | ŠL20x40 | 98 | 2.1 | A | 1.89 | 3.45 | 6.3 | 6.3 |
| TN58 | ŠL25x25 | 122 | 2.3 | A | 3 | 6.3 | 6.3 | 6.3 |
| TN59 | ŠL25x25 | 122 | 2.3 | A | 2.07 | 4.95 | 7.5 | 7.6 |
| TN60 | ŠL25x32 | 152 | 2.75 | A | 6.8 | 6.8 | 7.0 | 7.0 |
| TN61 | ŠL25x40 | 190 | 3.3 | A | 7.0 | 9.2 | 9.2 | 9.2 |
Pastaba: Nuo 1979 m dalis transformatorių gaminami sumažintu
išvadų kiekiu pirminėje apvijoje, nekeičiant 220 V išvadų, kurie yra 1-5
ir sujungiant išvadus 3 ir 4.
Panaudota literatūra: žurn. Radijo 1981 Nr. 7-8, 73-74 psl.
